Tip #2Kinesense LE
How to pause an annotation with gaps
Hide a blur or spotlight for part of a clip. Add a gap on the annotation bar while the subject is out of shot; the effect returns when they come back.
This week we are looking at a useful feature of video annotation: gaps.
Say you want to blur a person’s face in a video report, or highlight an incident. In the Annotations tab you can have a spotlight follow the person of interest and apply the blur. But sometimes you will want to turn the blur off for a few frames, because the subject has walked behind an object or left the scene for a while.
Insert a gap when they leave and end it when they come back. The annotation disappears for as long as they are gone, then comes back in the same spot.
Inserting a gap
Right-click the annotation bar where you want the gap to start and select Insert New Gap.

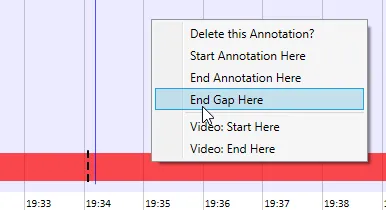

Then find the point where you want the annotation to come back, right-click again and select End Gap Here.
And there you have it. The new gap appears on the timeline, and for its duration the annotation won’t appear in your clip.
Editing or deleting a gap

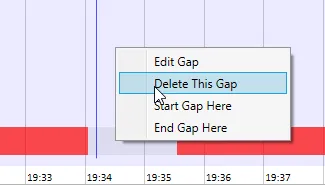

If you got the length of the gap wrong, or realise you don’t need it, right-click the gap and choose one of the editing options. To remove it, right-click it and select Delete This Gap.
Everything is saved automatically.
