Tip #85Kinesense LE
How to move a Kinesense licence to a new PC
Delete the licence on the old PC and send us the deletion code, then send the new PC’s licence request code to get a replacement key.
Sometimes you need to move your KinesenseLE licence to a new PC – and this is quick and easy. (Note: if you are using a licence server, you don’t need to do anything – this Tip&Trick is for local PC licences).
Step 1: Delete the licence from your old PC and send us the deletion code
You can do this from the Options->About Kinesense dialog. Then expand the licence section. You will see a ‘bin’ icon.

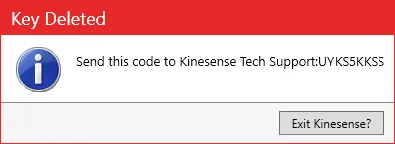

Click this to delete your current licence. It will show you a Deletion code – email this to the Kinesense Tech Support team. We will use it to update our records, and so we can generate a replacement key for your new PC.
Step 2: Generate a new key for your new PC
Now that you have removed the old key, you need to generate a new key for your new PC.
Install KinesenseLE on your new PC (if you haven’t done so already). In the About Kinesense dialog, under License, note down the new License Request code and send this to us – we will use this to generate a licence key for the new PC.
