Tip #81Kinesense LE
How to detect licence plates in CCTV video
Find licence plates, including small and partial ones, with the YOLO plug-in, then review them on the timeline and in the Grid tab.
Detection of Licence Plates in CCTV
KinesenseLE can now detect licence plates in video and display the results in the Grid tab. It works on real-world video and will fine even partial or unclear plates – a key requirement for certain investigations.
To use this feature, first ensure you have installed the optional “Kinesense Yolo Plugin”, which you will find under ‘Deep Learning’ in the Download Manager.

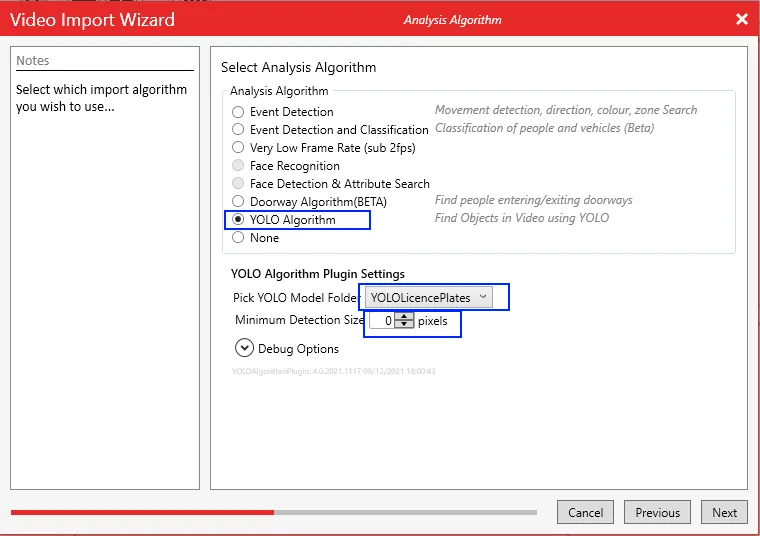

On import, under “Select Analysis Algorithm”, pick “Yolo Algorithm”. Choose the ‘YoloLicensePlate’ option and set the ‘minimum detection size’ to zero pixels (so that even very small plates/far away can be found)

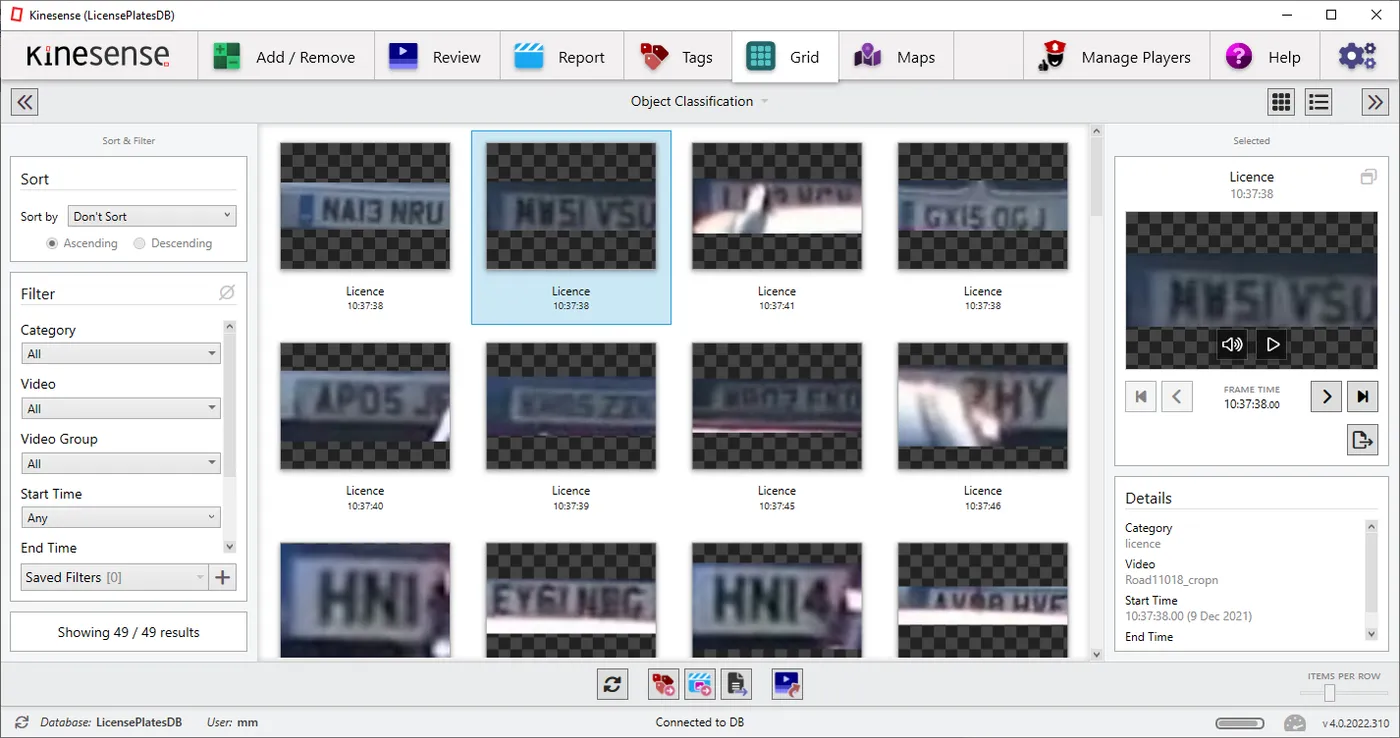

The video will import and it will find the licence plates in the video. You can review the results either on the Review Timeline, or in Grid
